GEPRC DarkStar16
GEPRC DarkStar16
SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: No
Brand Name: NoEnName_Null
Camera Mount Type: Fixed Camera Mount
Certification: CE
Charging Time: 30 minutes
Control Channels: 8 CHANNELS
Controller Battery: No
Controller Mode: MODE1,MODE2
Dimensions: 1.6-inch
Drone Weight: 86g/56g
Equipped with Aerosol Spray System/Equipment Capacity: No
Features: App-Controlled
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Carbon Fiber,Plastic,Metal
Model Number: DarkStar16
Motor: Brushless Motor
Operator Skill Level: Beginner,Intermediate,expert
Origin: Mainland China
Package Includes: Original Box
Plugs Type: XT30
Power Source: Electric
Recommend Age: 14+y
Remote Control: Yes
Remote Distance: 1000
State of Assembly: Ready-to-Go
Takeoff Weight: 280
Transit Time (Days): 1000
Type: HELICOPTER
Video Capture Resolution: Other
Warning: Batteries not included
Warranty: 3 month
Note: Contents vary by selected WTFPV or O4 Pro specifications.
Note: The WTFPV version does not come with any VTX, camera!!!
Summary

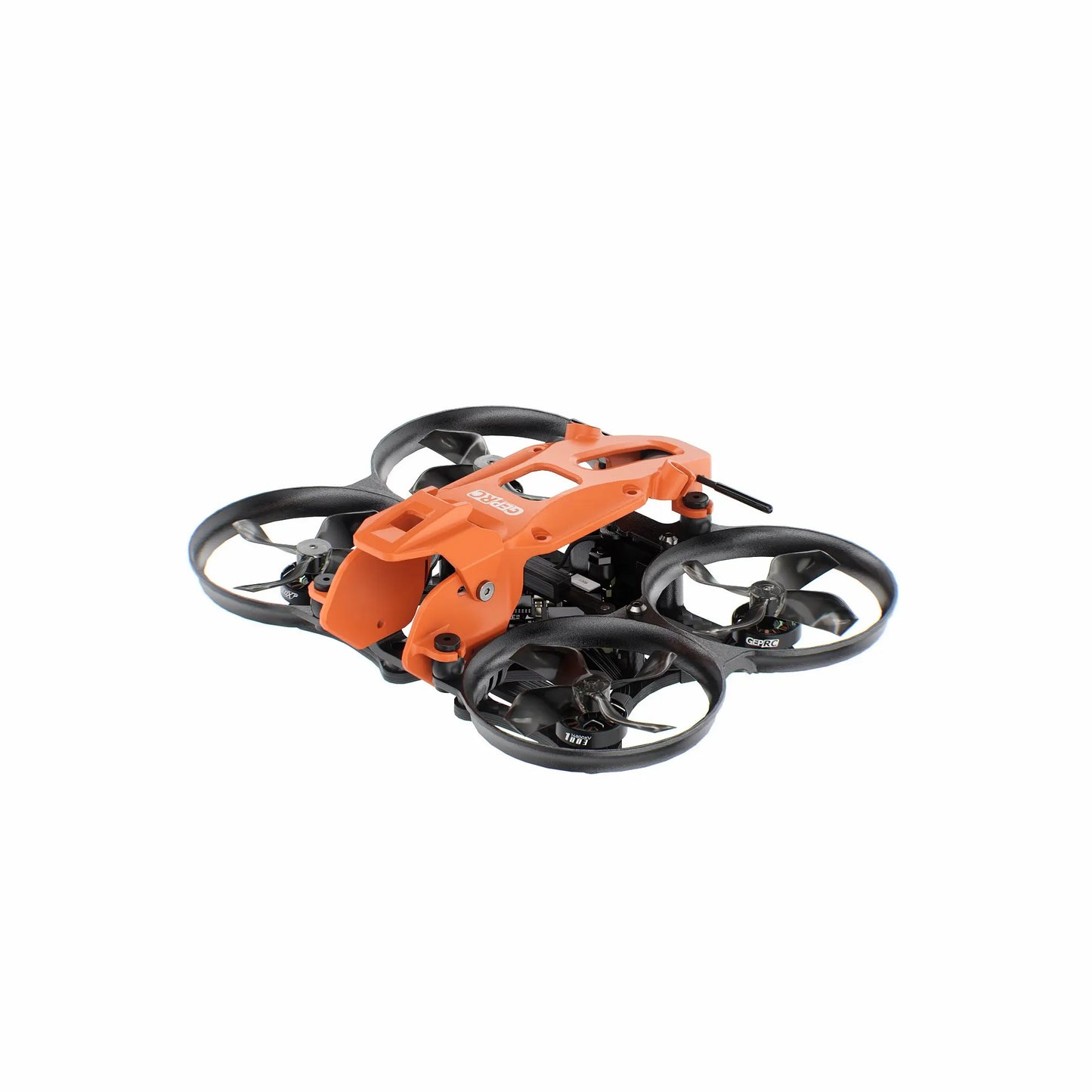

The Darkstar16 is GEPRC’s latest TinyWhoop, designed for flexible, on-the-go flying.
Featuring a 1.6-inch frame and the O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.
The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.
The Darkstar16 offers a high-performance, creative flight experience.

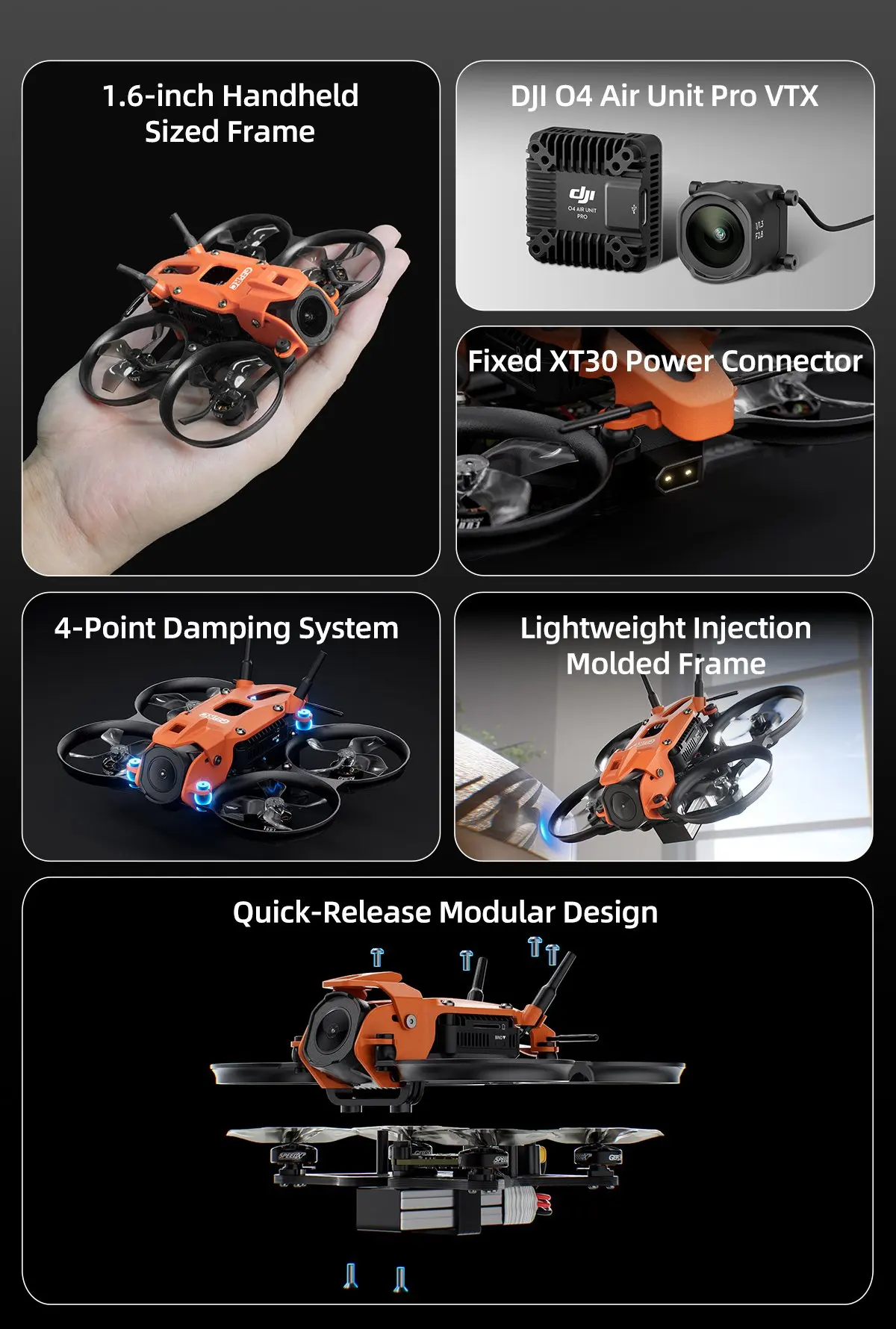

Feature
- The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.
- Quick-release design lets you detach the VTX module by removing just 6 screws.
- Equipped with the O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.
- Lightweight molding strikes a balance between durability and performance.
- The compact 1.6-inch frame offers portability for efficient filming.
- The fixed XT30 power connector ensures simple on/off operation.
1.DarkStar16 O4 Pro WTFPV Specifications
-
Model: GEPRC DarkStar16 O4 Pro WTFPV
-
Frame: GEP-DS16
-
Wheelbase: 91mm
-
FC System: TAKER F411-12A-E 1-2S AIO
-
MCU: STM32F411CEU6
-
Gyro: ICM42688-P
-
OSD: Betaflight OSD w/AT7456E chip
-
ESC: Bluejay 8Bit 12A
-
VTX: /
-
Camera: /
-
Antenna: 5.8G UFL antenna
-
Motor: SPEEDX2 1003 14800KV
-
Propeller: Gemfan1636-4
-
GEPRC DarkStar16 WTFPV PNP Version Weight: 56g±5g
-
Receiver: PNP / ELRS2.4G
-
Recommended Battery: LiHV 2S 530mAh
-
Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

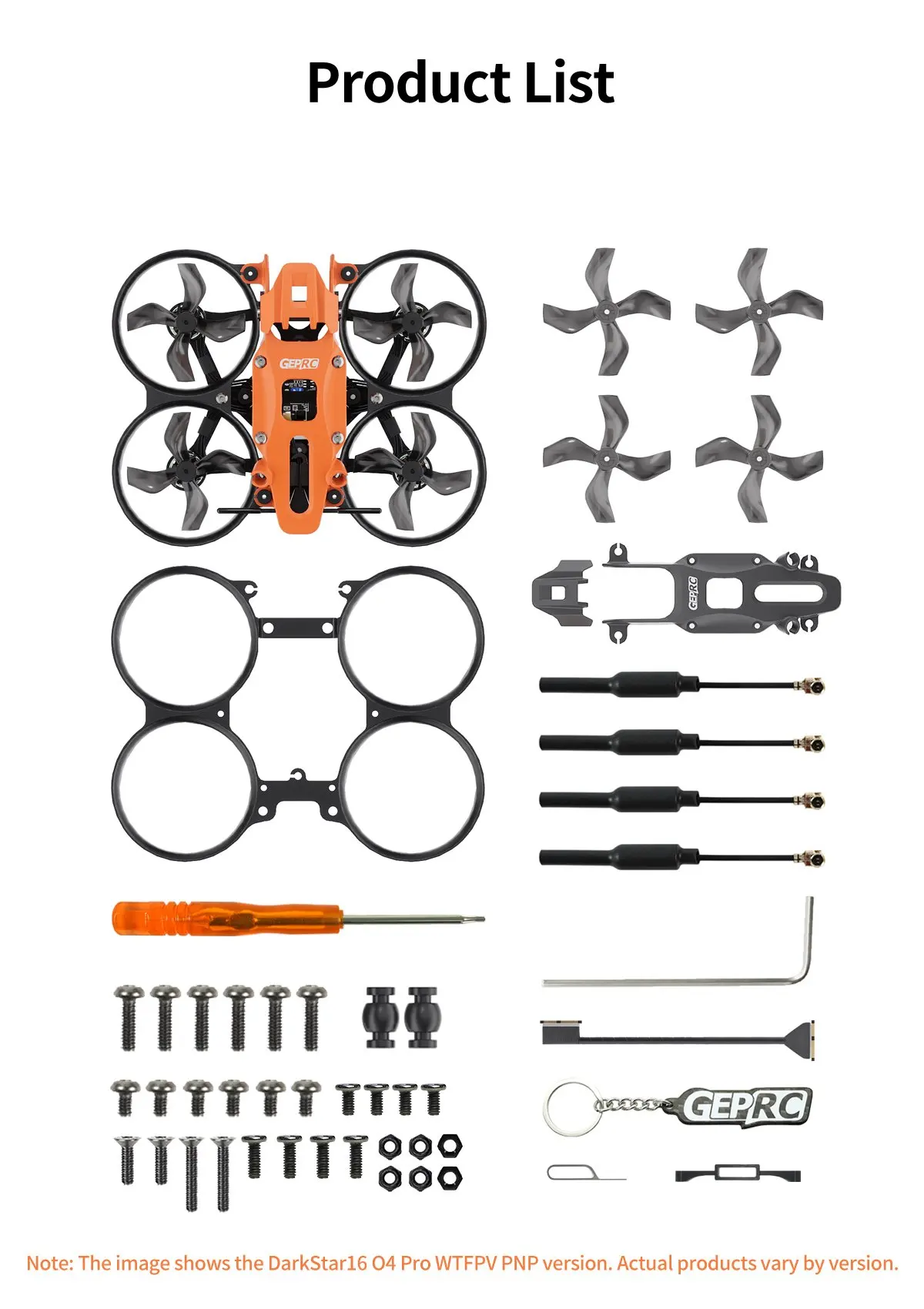

Includes
1 x Darkstar16 top plate (grey）
1 x Darkstar16 camera protector (grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (2CW+2CCW)
1 x Plum screwdriver
1 x Spare screw pack
1 x Keychain
2.DarkStar16 O4 Pro Specifications
- Model: DarkStar16 O4 Pro
- Frame: GEP-DS16
- Wheelbase: 91mm
- FC System: TAKER F411-12A-E 1-2S AIO
- MCU: STM32F411CEU6
- Gyro: ICM42688-P
- OSD: Betaflight OSD w/AT7456E chip
- ESC: Bluejay 8Bit 12A
- VTX: O4 Air Unit Pro VTX Module
- Camera: O4 Air Unit Pro Camera Module
- Antenna: 5.8G UFL antenna
- Motor: SPEEDX2 1003 14800KV
- Propeller: Gemfan1636-4
- DarkStar16 O4 PNP (Built-in O4 air unit Pro receiver) Version Weight: 86g±5g
- Receiver: PNP / ELRS2.4G
- Recommended battery: LiHV 2S 530mAh
- Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）
Includes
1 x Darkstar16 top plate (Grey）
1 x Darkstar16 camera protector (Grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (2CW+2CCW)
1 x Plum screwdriver
1 x Spare screw pack
1 x Keychain
